automatic sealing machine
ultrasonic tubes plastic laminated filling sealing machinery fully automatic tubes feeding printing codes filler and sealer equipments

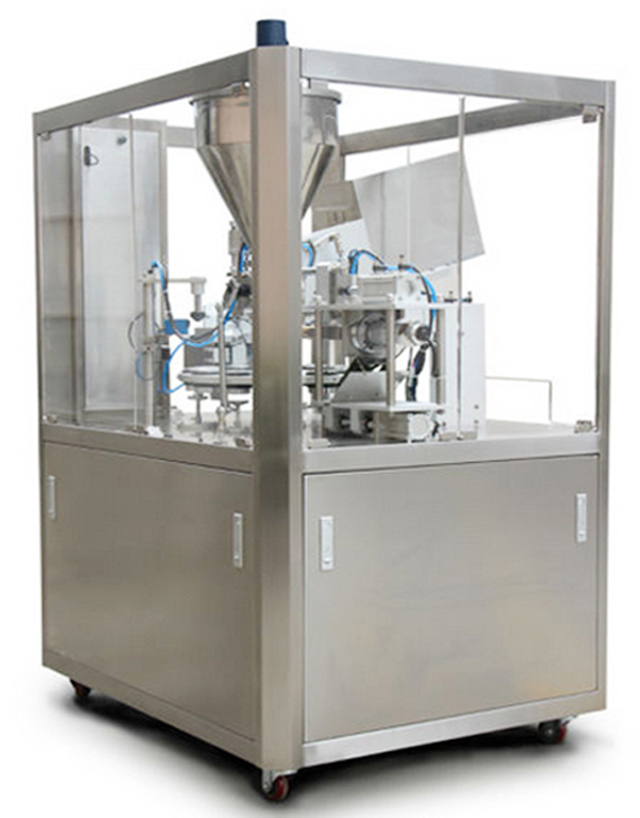

Model YX-AUF400 Ultrasonic Plastic Tube Filling and Sealing Machine fully automatic ultrasound tube filler sealer equipments

>

ultrasonic soft tube filling and sealing machine applying:
ultrasonic soft tube (ie laminated tubes/plastic tubes) filling and sealing machine is for filling, sealing tube with viscosity of oil, cream and gel etc ointment
ultrasonic soft tube filling and sealing machine features:

ultrasonic tube seal fully automatic machine filler and sealer equipment is special  designed and manufactured with all mechanical structure, steel frame work and hygiene guaranteed.

GMP standard products from PENGLAI INDUSTRIAL CORP.

ultrasonic tube sealer equip.jpg

back View for automatic supersonic filling sealing machine fully automatic


1)High grade operation screen with LCD dispaly PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, out put count, pressure index and failure dispaly.



2)Automatically executing tube supply, phtotoelectron register, inert gas filling(optio-nal), material filling and sealing, batch number printing, final products output.
3)High precision phtotoelectron register, reduced the chromatic aberration scope.
4)Adjustment parts external in position, position digital display, convenient and accurate adjust(suitable for variety products producing).
5)Phtotoelectronic, electric, pneumatic intergrative controlling, reaches no tube no filling function; waring if tube error positionedor pressure too low, automatic stop machine if open the protective door.
ultrasonic soft tube filling and sealing machine parameter:



feeding control with a baffle.jpg

tubes feeding slot feeding control with a baffle


Model    YX-AUF400    YX-AUF400S
Tube material    Metal tube, ALU tube    Plastic tube, Compound tube
Tube diameter    µ10-µ50    µ10-µ60
Tube length    50-250customizable    50-300 customizable
Filling volume    5-500ml/branch Adjustable      5-800ml/branch  Adjustable
Filling accuracy     less than 1%
Speed(r/min)    3-10    2.5-7
Product capacity    30-60Pc/min    30-60Pc/min
Working pressure    0.55-0.65mpa    0.55-0.65mpa
Motor Power    2kw 380V/ 220V 50Hz
Heat sealing power    3kw    3kw
Overall dimension    2620*1020*1980mm     2620*1020*1980mm
Machine weight(kg)    1100    1100

holding tray for tubes.jpg

rotate holding tray special holding design with a rubber ring


Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like Model YX-AUF400 Ultrasonic Plastic Tube Filling and Sealing Machine fully automatic ultrasound tube filler sealer equipments,please email via jackdu999@yahoo.com or browse our website http://penglaichina.com.
Follow us on twitter:http://www.twitter.com/jackdu007
Like us on facebook:http://www.facebook.com/jackdu999
Skype us by :turnanewleaf
Call us via:0086-15811882441

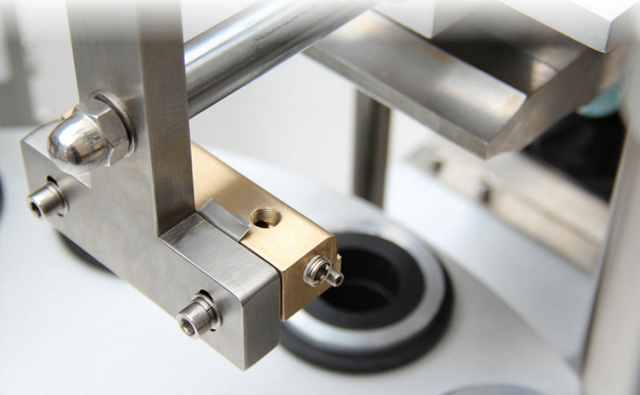

sealing bar for date coding.jpg

Sealing bar with producing date all brass made

PLC control panel  touch screen is easy to operate with power switch and emergency stop button


. it is very safe to use.

Packaging pictures about our machine exported

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence,

or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

 (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician

 USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
