Model YX-FS60 series Automatic tube filling and sealing machine has 3 speeds:30-40pcs/m,60-70pcs/m,120pcs/m



►1. Working process



►2.Features of filling and sealing machine



►3.Demo on how model YX-FS60 filling sealing machine runs



►4.Parameters of filling and sealing tubes machine



►5. Drawing of tube filling machine automatic



►6. Details of tubes filling and sealing equipment



►7. Configuration of tubes filler sealer



►8. Auxiliary equipments for filling machine

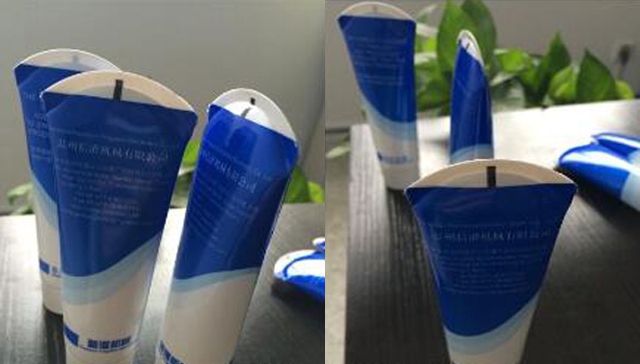

►9. Finished sealed tubes



►10. After-sales service for tubes filler sealer

Tube Filling and Sealing Machine

Automatic hose sealing machine is widely used in toothpaste, cosmetics, medicine, and food industries.

The equipment has a high degree of automation, automatic loading, automatic color matching, automatic sealing, batch numbering, and automatic discharging. Using the internal heating method, the Swiss "LEISTER" hot air heater is used to blow hot air from the inner wall of the hose, thereby melting the plastic, and then marking and batch number. The indexing adopts a precision cam indexing mechanism, and the positioning is accurate and stable. The main motor adopts frequency conversion speed regulation, users can adjust the running speed by themselves.



Packaging materials and filling materials Scope:

1) plastic tube, plastic composite tube, aluminum-plastic composite tube.

2) ointments, creams, gels and viscosity fluids.

Tube (container) → Automatic tube → Identification positioning → Hose cleaning (option) → Filling → Tail hot melt → Pressing and sealing, typing → Hose positioning → Cutting → Finished product discharge

◆ The mechanical transmission part is enclosed below the platform, safe and reliable, no pollution;

◆ The filling and sealing part is installed above the platform, and the semi-closed static-free outer frame visible cover is easy to observe, easy to operate, and easy to maintain;

◆ Stainless steel operation panel surface, organic glass protective cover, and installed door protection function;

◆ The oblique hanging tube warehouse can accommodate more hoses,

◆ The upper tube device is equipped with a vacuum adsorption device. After the upper tube interacts with the pressure tube device, the hose is inserted into the upper tube station;

◆ The photoelectric alignment station uses high-precision probes, stepper motors, and other control hose patterns to be located in the correct position;

◆ Without tube and no filling, at the end of the injection, the air blowing device blows off the paste tail; anti-drawing, anti-drip filling

◆ The heating temperature of the tail sealing adopts (Leister hot air gun) internal heating of the tube tail, and the outside is equipped with a cooling and cooling device;

◆ Automatically imprint the production batch number or date at the position required by the process while sealing the tail;

◆ The waste cutting manipulator cuts the waste edge of the hose tail, right-angle, R-angle or arc, and other special-shaped seals;

◆ Internal barrel mixing design for the next big power mixing device, safe, reliable, the scope of application. Barrel insulation system with a controllable water temperature device and a flux-free sandwich hopper to complete. (Option)

◆ Fault protection, overload shutdown, water pressure protection, air pressure protection.

 Automatic tube filling sealing machine for varicose veins Cold compress gel 23ml gel filler sealer test run video:



Cold compress gel tube filling weight accuracy testing:

Production capacity: 40 pcs

Filling capacity: 5-250ml

Hose diameter: 15-50mm

Hose length: 50-220mm

Filling error: ≤ ± 1%;

Motor power: main motor 1.1kw, heat sealing power: 3kw

Working air pressure: 0.60MPa

Air consumption: not less than 600L / min

Equipment weight: 750kg

Dimensions: 1700 * 1000 * 2000mm

Technical Parameters of YX-FS60 Medium speed type

Production capacity: 60-70 / min

Filling volume: 2 -250ml

Hose diameter: 10-55 mm

Hose length: 50-220 mm

Filling accuracy: ≤ ± 0.5%

Sealing heating method: within the heating

Main motor power: 1.5KW

Heat sealing power: 3KW

Working pressure: 0.6MPa

Overall dimensions: 2270mm × 960mm × 2100mm

Weight: 1250kg

*Note: The above parameters are for reference only. The machine constantly upgrades parameters that may cause the actual discrepancies, please understand.

Items	Brand	Origin
P LC	DELTA	TAIWAN
Frequency Changer	DELTA	TAIWAN
Touch Screen	EVIEW	TAIWAN
Encoder	Omron	JAPAN
Hot Air Generator	Leister	Switzerland
Thermometer MODE	DELTA	TAIWAN
Proximity switch	SICK	GERMANY
Color Code Sensor	PANASONIC	JAPAN
Air Pressure Control System	Omron	JAPAN
Change Speed Motor	WANNAN	CHINA
Main Pneumatic component	AIRTAC	TAIWAN
Air-break switch	CHNT	CHINA
Emergency Swift	Schneider	FRANCE
Power switch	Schneider	FRANCE
Power lock	Schneider	FRANCE
Power indicator	Schneider	FRANCE
Ac contactor	Schneider	FRANCE
Material Level Sensor	P+F	Germany
Material contact parts	316L Stainless Steel	CHINA
Machine Structure	304 Stainless steel	CHINA

CA-01 Water chiller:

Microcomputer PLC control system, automatically control of whole units with error correcting operation system.

Original "SCHNEIDER" electrical components, and stability and durability guaranteed.

Built-in titanium tube water tank evaporator, avoid solid and other metal impurities.

Various models designed for different laser equipments. Water temperature tolerance at ±1℃(even±0.1℃) by precise digital control system. With push button operation, work normally without professional personnel.

Easy installation and compatible with equipments in any height.

High efficiency heat exchanger in special design, and static spraying casing with compact size.

Technical parameters:

power of compressor :0.95KW

cooling capacity：2.85KW

Pump power：0.25KW

Refri gerant:R22

Power supply:1P-220V/50HZ

Optional devices:

1. Mold (cup holder and filling heads etc. )

2. Level controller and plunger type pump into barrels

3. Water circulation heating box Mezzanine barrel



4. Stirring/mixing device





Machine touch screen startup interface:

Wooden packaging before shipment:
